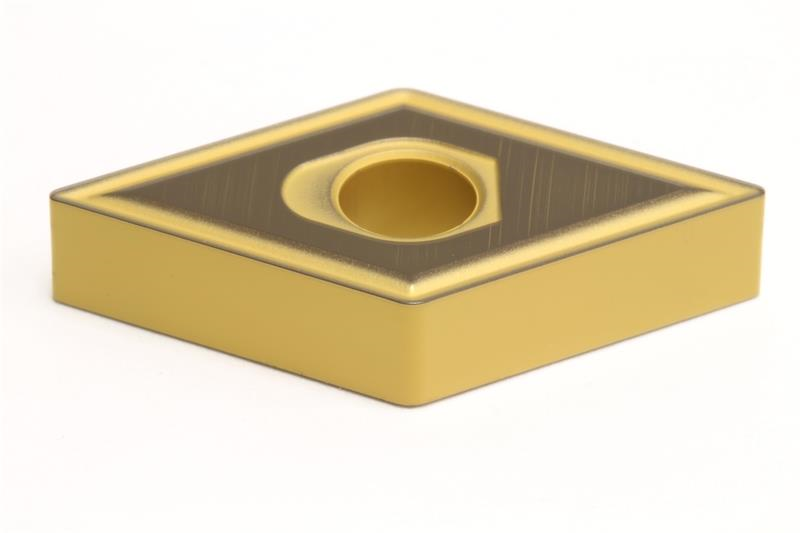

DNMG432 EEX AC610U Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432EEX AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style DNMG
Insert Type Negative
Rake Angle 16 Degree
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Included Angle 55
Insert Size 432
Coating/Finish CVD
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Grade AC610M
Number of Edges 4
Chipbreaker Type EEX
Material Solid Carbide
