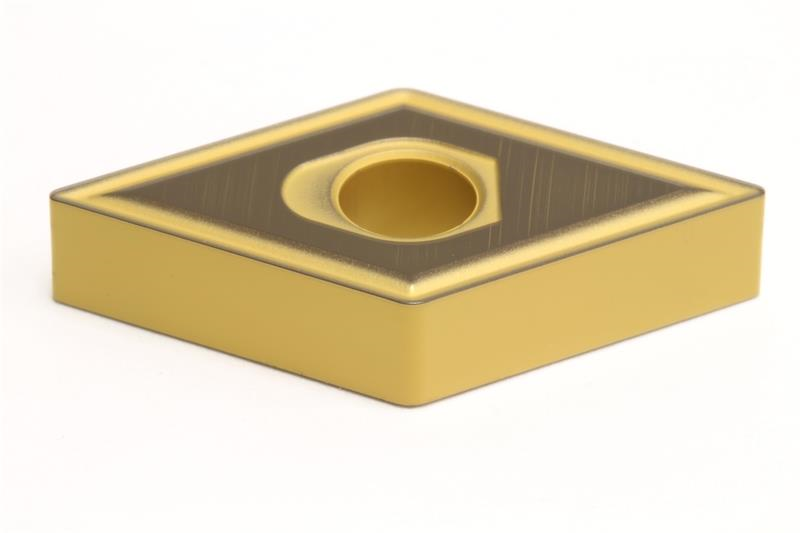

DNMG432 EEX AC630U Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432EEX AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Grade AC630M
Included Angle 55
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Inscribed Circle 0.5000 Inch
Rake Angle 16 Degree
Insert Style DNMG
Material Solid Carbide
Brand Sumitomo
Chipbreaker Type EEX
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
