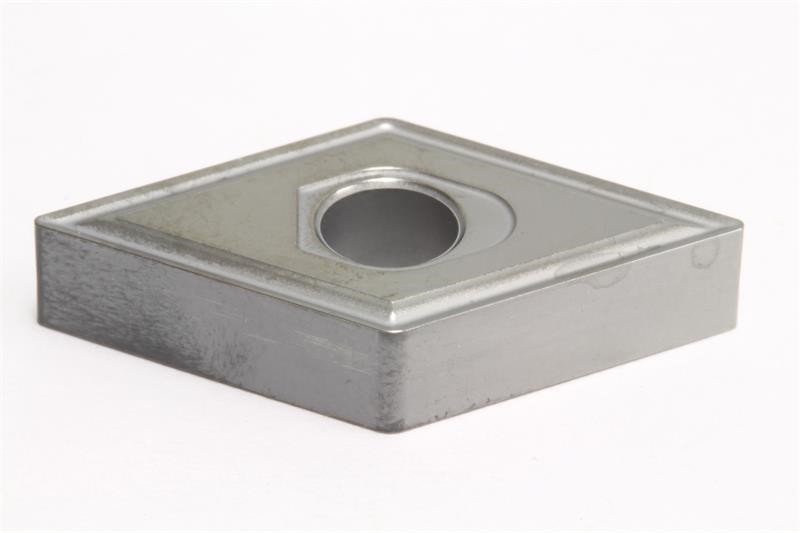

DNMG432 EEX EH510 Grade, Carbide, Turning Insert

  • Item Code: DNMG432EEX-EH510
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EEX
Grade EH510
Corner Radius 0.0313 Inch
Number of Edges 4
Thickness 0.1875 Inch
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Product Name Turning Insert
Brand Sumitomo
Included Angle 55
Insert Style DNMG
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Rake Angle 16 Degree
Coating/Finish None
Inscribed Circle 0.5000 Inch
Shape Diamond
