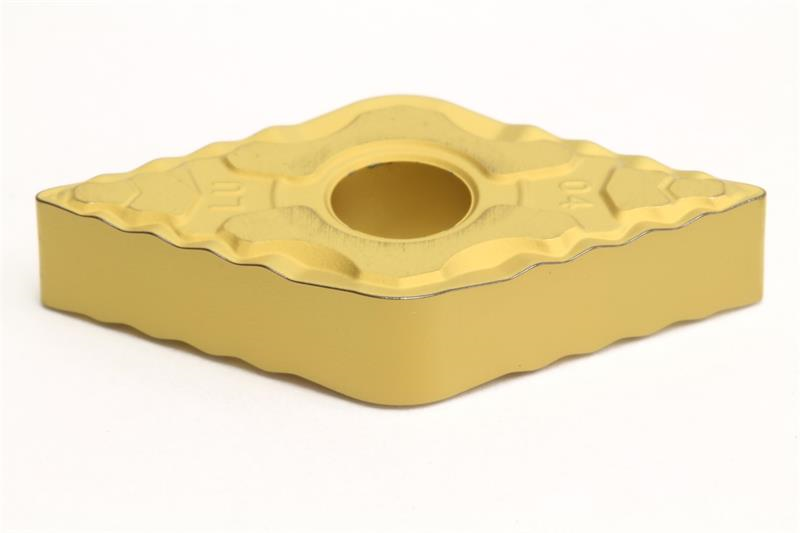

DNMG432 ELU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432ELU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Included Angle 55
Relief Angle 0 Degree
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Coating/Finish CVD
Number of Edges 4
Insert Type Negative
Material Solid Carbide
Rake Angle 10 Degree
Insert Style DNMG
Shape Diamond
Chipbreaker Type ELU
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Grade AC820P
Product Name Turning Insert
