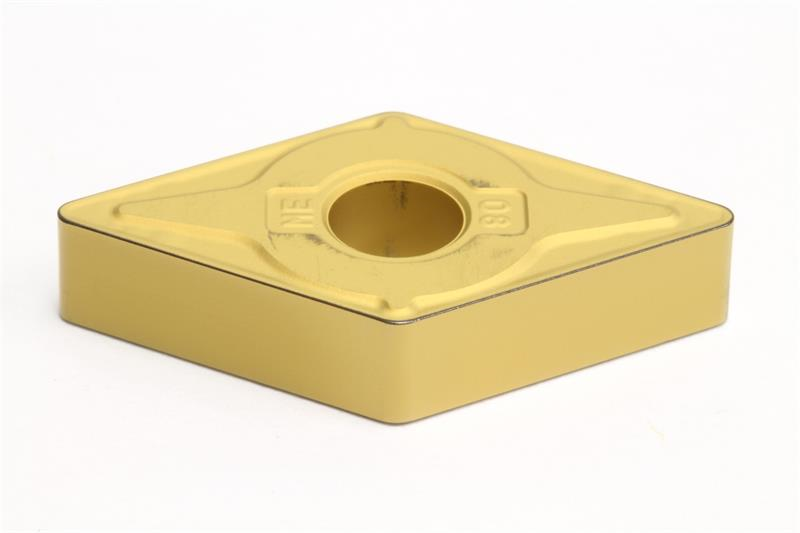

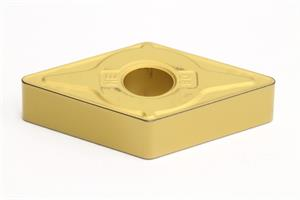

DNMG432 EME AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432EME AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Brand Sumitomo
Insert Style DNMG
Chipbreaker Type EME
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Number of Edges 4
Thickness 0.1875 Inch
Inscribed Circle 0.5000 Inch
Shape Diamond
Coating/Finish CVD
Grade AC820P
Product Name Turning Insert
Rake Angle 4 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 55
