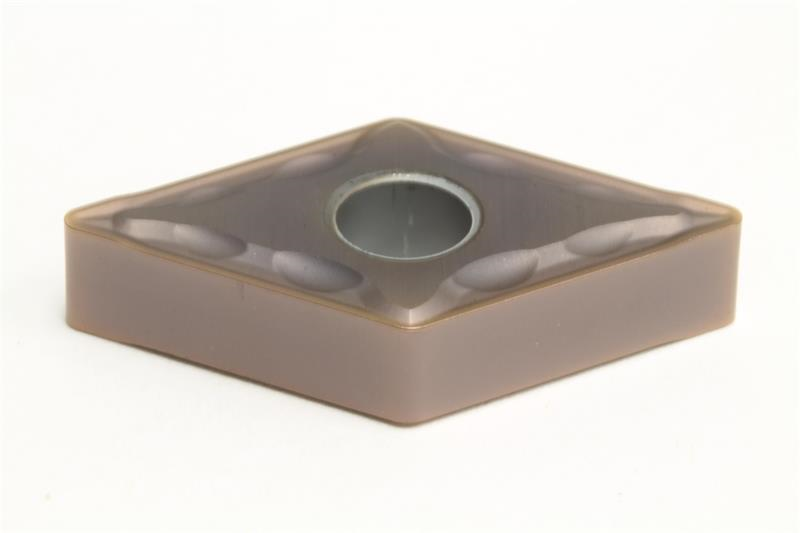

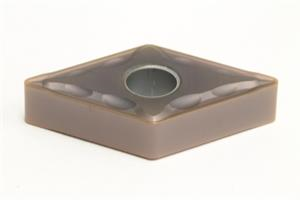

DNMG432 EMU AC520U Grade, Carbide, Turning Insert

  • Item Code: DNMG432EMU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Brand Sumitomo
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Included Angle 55
Insert Style DNMG
Insert Type Negative
Relief Angle 0 Degree
Product Name Turning Insert
Corner Radius 0.0313 Inch
Number of Edges 4
Shape Diamond
Chipbreaker Type EMU
Grade AC520U
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Rake Angle 4 Degree
