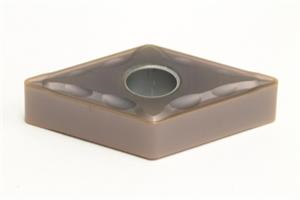

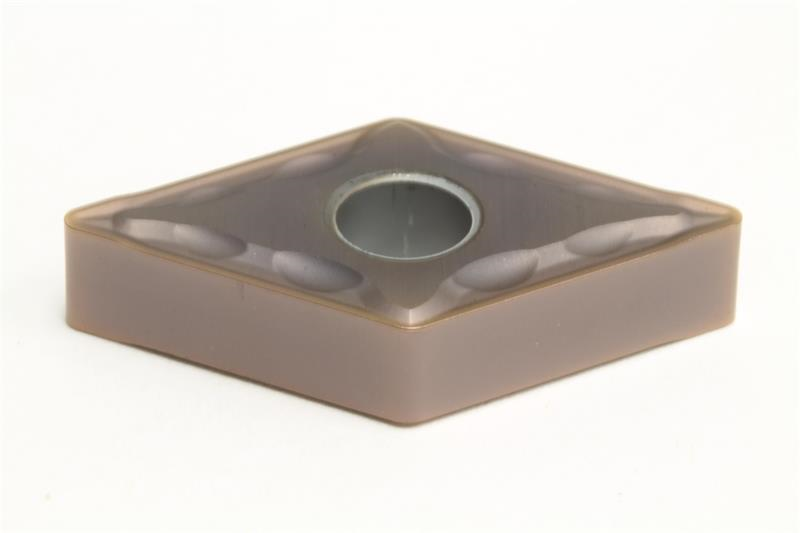

DNMG432 EMU AC530U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DNMG432EMU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Style DNMG
Insert Type Negative
Insert Size 432
Number of Edges 4
Shape Diamond
Grade AC530U
Rake Angle 4 Degree
Material Solid Carbide
Brand Sumitomo
Product Name Turning Insert
Corner Radius 0.0313 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EMU
Included Angle 55
Thickness 0.1875 Inch
