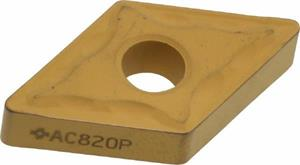

DNMG432 EMU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432EMU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Insert Style DNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC820P
Included Angle 55
Inscribed Circle 0.5000 Inch
Chipbreaker Type EMU
Shape Diamond
Material Solid Carbide
Corner Radius 0.0313 Inch
Number of Edges 4
Product Name Turning Insert
Coating/Finish CVD
Rake Angle 4 Degree
Thickness 0.1875 Inch
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
