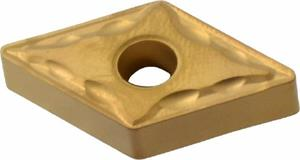

DNMG432 EMU AC830P Grade, Carbide, Turning Insert

  • Item Code: DNMG432EMU-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC830P
Number of Edges 4
Insert Style DNMG
Insert Type Negative
Material Solid Carbide
Chipbreaker Type EMU
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 55
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Shape Diamond
Brand Sumitomo
Insert Size 432
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
