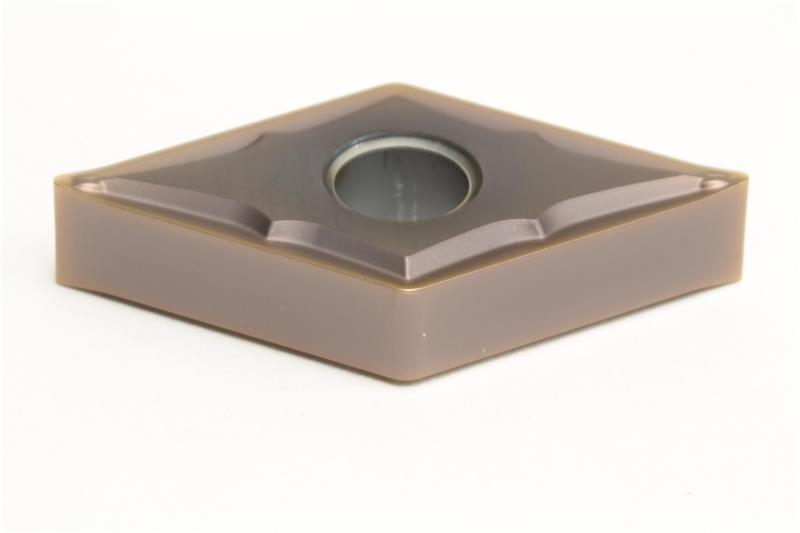

DNMG432 ESU AC510U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DNMG432ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC510U
Shape Diamond
Brand Sumitomo
Insert Style DNMG
Rake Angle 13 Degree
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Included Angle 55
Thickness 0.1875 Inch
Chipbreaker Type ESU
Corner Radius 0.0313 Inch
Number of Edges 4
Product Name Turning Insert
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
