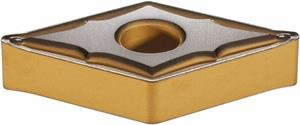

DNMG432 ESU AC630M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432ESU-AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Grade AC630M
Product Name Turning Insert
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type ESU
Coating/Finish CVD
Number of Edges 4
Insert Type Negative
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Shape Diamond
Thickness 0.1875 Inch
Insert Style DNMG
Rake Angle 13 Degree
Included Angle 55
