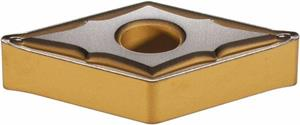

DNMG432 ESU AC700G Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC700G
Relief Angle 0 Degree
Chipbreaker Type ESU
Included Angle 55
Insert Style DNMG
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Type Negative
Material Solid Carbide
Rake Angle 13 Degree
Brand Sumitomo
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Number of Edges 4
Shape Diamond
