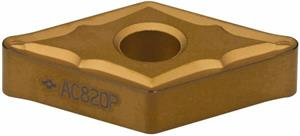

DNMG432 ESU AC820P Grade, Carbide, Turning Insert

  • Item Code: DNMG432ESU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 55
Material Solid Carbide
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Insert Style DNMG
Rake Angle 13 Degree
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type ESU
Coating/Finish CVD
Product Name Turning Insert
Corner Radius 0.0313 Inch
Number of Edges 4
Grade AC820P
