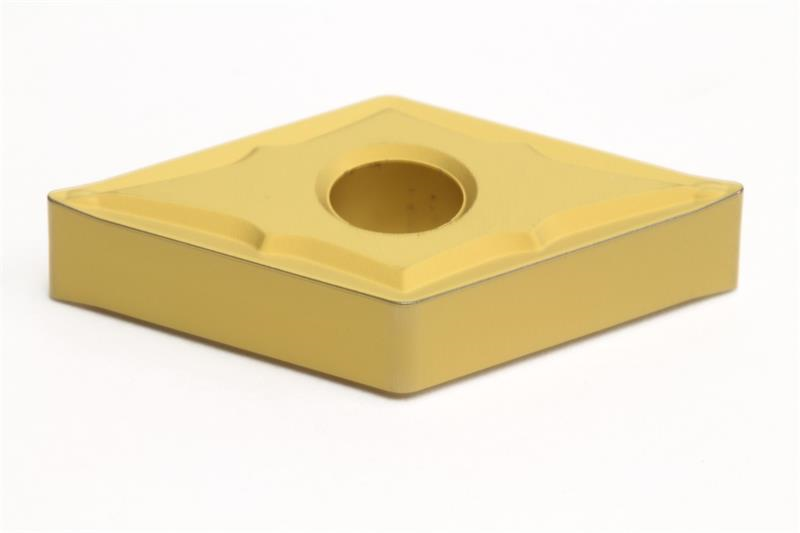

DNMG432 ESU AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432ESU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Included Angle 55
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Insert Type Negative
Shape Diamond
Thickness 0.1875 Inch
Grade AC830P
Insert Style DNMG
Rake Angle 13 Degree
