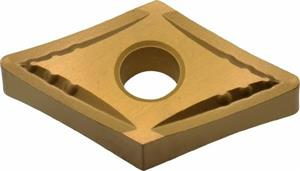

DNMG432 EUP AC830P Grade, Carbide, Turning Insert

  • Item Code: DNMG432EUP AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Grade AC830P
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Rake Angle 10 Degree
Shape Diamond
Insert Style DNMG
Chipbreaker Type EUP
Material Solid Carbide
Included Angle 55
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Product Name Turning Insert
