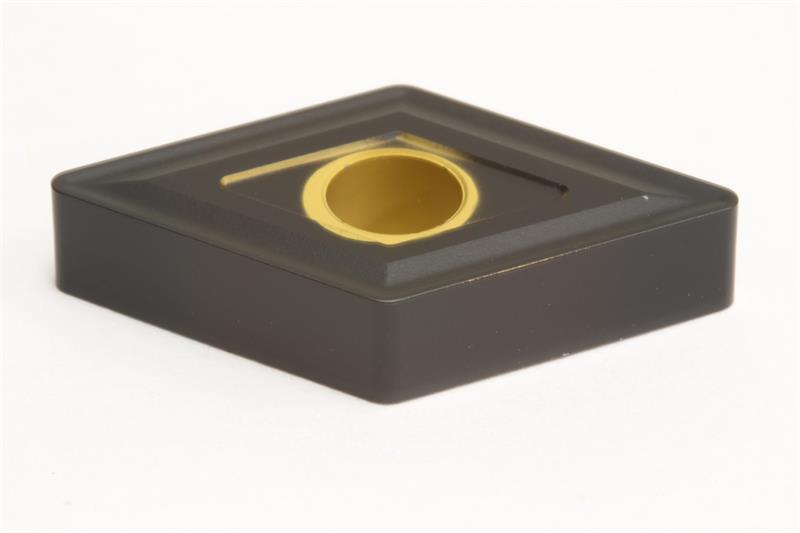

DNMG433 EGZ AC420K Grade, Carbide, Proprietary Coated, Turning Insert

  • Item Code: DNMG433EGZ AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type EGZ
Insert Size 433
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Shape Diamond
Insert Style DNMG
Relief Angle 0 Degree
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Brand Sumitomo
Grade AC420K
Included Angle 55
Rake Angle 0 Degree
