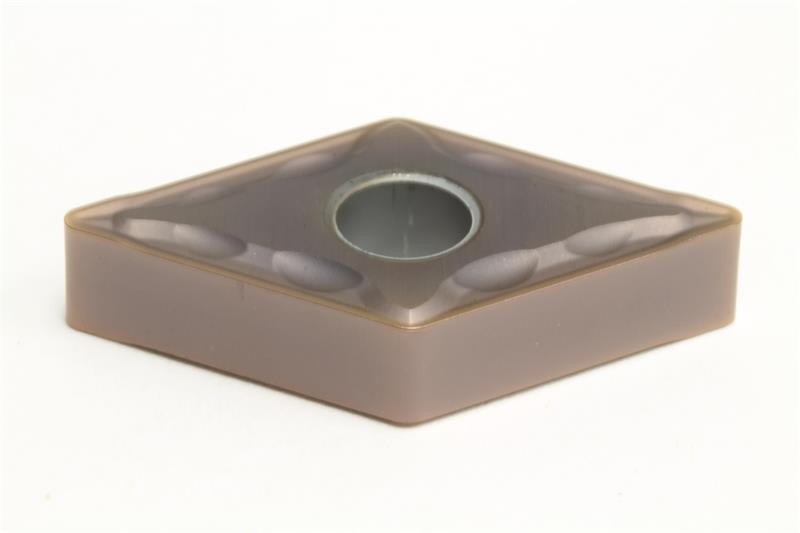

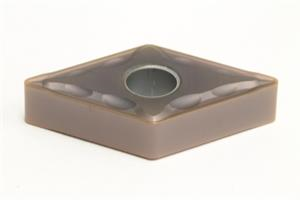

DNMG433 EMU AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DNMG433EMU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Style DNMG
Grade AC520U
Included Angle 55
Insert Size 433
Material Solid Carbide
Product Name Turning Insert
Inscribed Circle 0.5000 Inch
Shape Diamond
Chipbreaker Type EMU
Number of Edges 4
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Rake Angle 4 Degree
