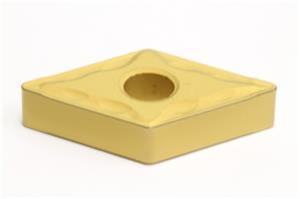

DNMG433 EMU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: DNMG433EMU-AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 4
Relief Angle 0 Degree
Insert Size 433
Rake Angle 4 Degree
Coating/Finish Coated
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style DNMG
Grade AC700G
Included Angle 55
Shape Diamond
Material Solid Carbide
Brand Sumitomo
Corner Radius 0.0469 Inch
Product Name Turning Insert
Chipbreaker Type EMU
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
