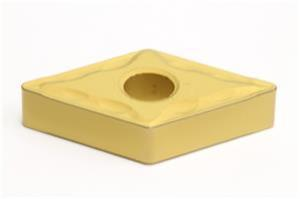

DNMG433 EMU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG433EMU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style DNMG
Coating/Finish CVD
Number of Edges 4
Grade AC820P
Inscribed Circle 0.5000 Inch
Product Name Turning Insert
Rake Angle 4 Degree
Chipbreaker Type EMU
Corner Radius 0.0469 Inch
Included Angle 55
Shape Diamond
Thickness 0.1875 Inch
Brand Sumitomo
Insert Size 433
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
