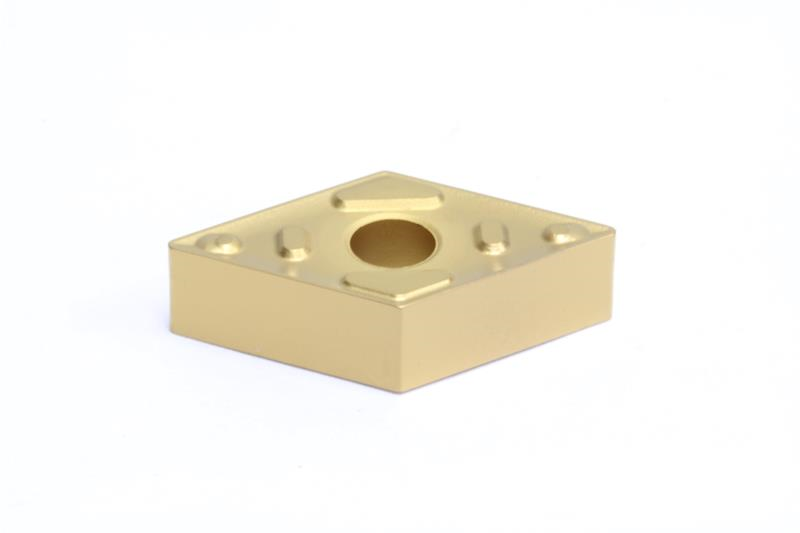

DNMG433 ENG AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG433ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ENG
Grade AC830P
Inscribed Circle 0.5000 Inch
Insert Type Negative
Brand Sumitomo
Insert Style DNMG
Thickness 0.1875 Inch
Corner Radius 0.0469 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 55
Rake Angle 4 Degree
Insert Size 433
Material Solid Carbide
Number of Edges 4
Shape Diamond
