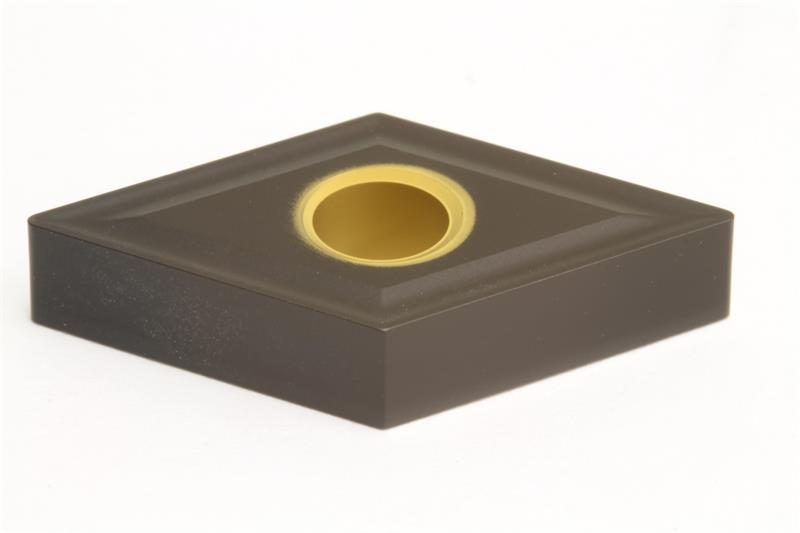

DNMG433 ENZ AC415K Grade, Carbide, Proprietary Coated, Turning Insert

  • Item Code: DNMG433ENZ AC415K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 433
Material Solid Carbide
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Style DNMG
Grade AC415K
Included Angle 55
Product Name Turning Insert
Chipbreaker Type ENZ/FNZ
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
Number of Edges 4
Thickness 0.1875 Inch
Inscribed Circle 0.5000 Inch
Shape Diamond
