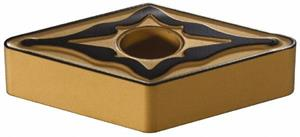

DNMG433 EUX AC700G Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG433EUX AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EUX
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Grade AC700G
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Included Angle 55
Number of Edges 4
Coating/Finish Coated
Insert Size 433
Insert Type Negative
Material Solid Carbide
Insert Style DNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0469 Inch
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Shape Diamond
