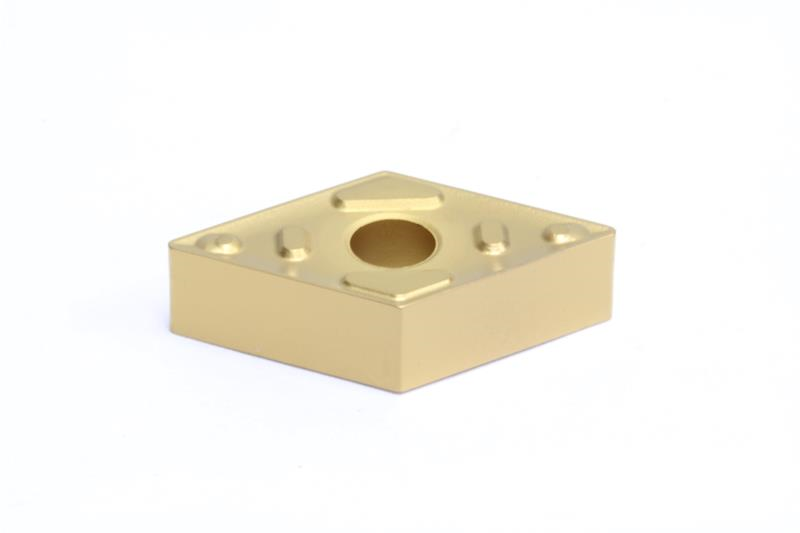

DNMG542 ENG AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG542ENG AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Included Angle 55
Number of Edges 4
Thickness 0.2500 Inch
Chipbreaker Type ENG
Insert Type Negative
Material Solid Carbide
Product Name Turning Insert
Relief Angle 0 Degree
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Insert Size 542
Mounting Hole Diameter 0.2500 Inch
Rake Angle 4 Degree
Insert Style DNMG
Corner Radius 0.0313 Inch
Inscribed Circle 0.6250 Inch
Shape Diamond
