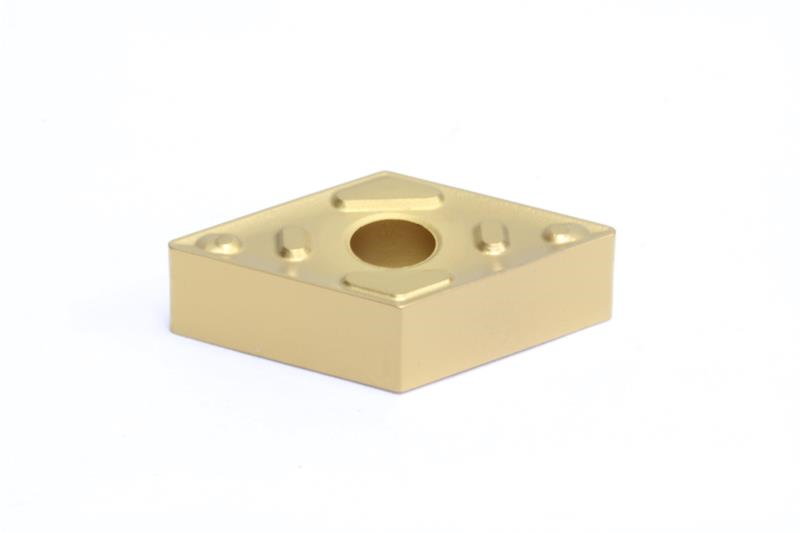

DNMG543 ENG AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG543ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Brand Sumitomo
Corner Radius 0.0469 Inch
Included Angle 55
Mounting Hole Diameter 0.2500 Inch
Product Name Turning Insert
Insert Style DNMG
Insert Type Negative
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 4 Degree
Chipbreaker Type ENG
Grade AC830P
Thickness 0.2500 Inch
Inscribed Circle 0.6250 Inch
Insert Size 543
Number of Edges 4
Shape Diamond
