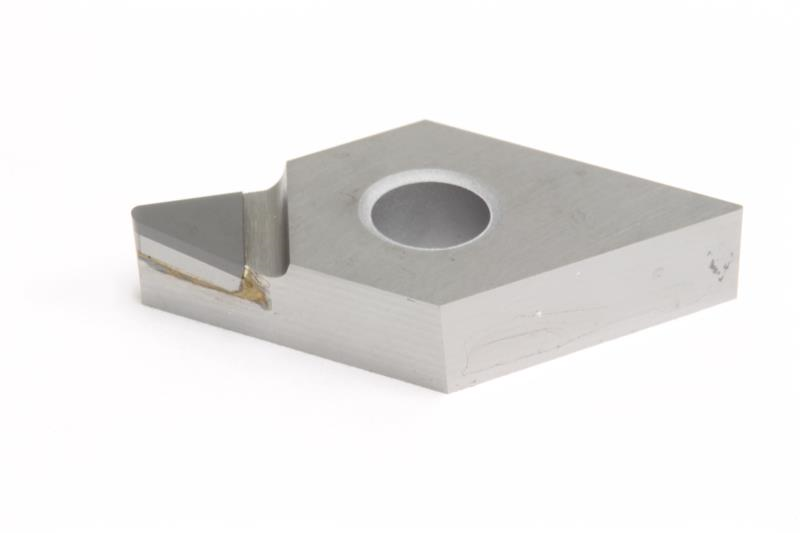

DNMX431 DA150 Grade, Polycrystalline Diamond (PCD), Turning Insert

  • Item Code: DNMX431 DA150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.

Tech Specs

Back To Top
Insert Style DNMX
Coating/Finish Compound
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Product Name Turning Insert
Rake Angle 10 Degree
Corner Radius 0.0156 Inch
Grade DA150
Insert Size 431
Number of Edges 4
Shape Diamond
Chipbreaker Type Standard Tip
Mounting Hole Diameter 0.2031 Inch
Brand Sumitomo
Material PCD
Included Angle 55
Relief Angle 0 Degree
