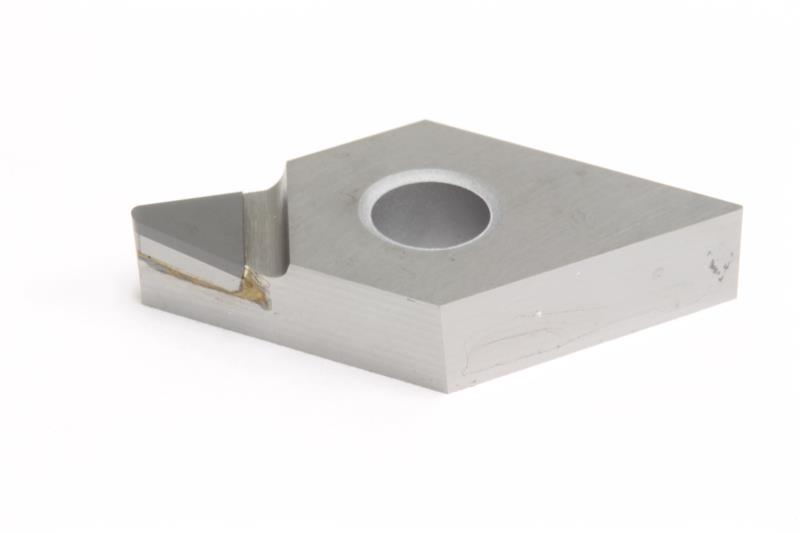

DNMX432 DA150 Grade, Polycrystalline Diamond (PCD), Turning Insert

  • Item Code: DNMX432 DA150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.

Tech Specs

Back To Top
Chipbreaker Type Standard Tip
Insert Size 432
Material PCD
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Grade DA150
Number of Edges 4
Rake Angle 10 Degree
Shape Diamond
Brand Sumitomo
Product Name Turning Insert
Coating/Finish Compound
Included Angle 55
Inscribed Circle 0.5000 Inch
Insert Style DNMX
Insert Type Negative
Thickness 0.1875 Inch
