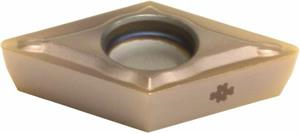

DPMT21.51 ESU AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DPMT21.51ESU-AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Thickness 0.0940 Inch
Brand Sumitomo
Insert Type Positive
Relief Angle 11 Degree
Corner Radius 0.0156 Inch
Included Angle 55
Inscribed Circle 0.2500 Inch
Shape Diamond
Insert Style DPMT
Product Name Turning Insert
Rake Angle 8 Degree
Chipbreaker Type ESU
Insert Size 21.51
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Grade AC520U
Material Solid Carbide
