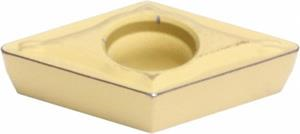

DPMT21.51 ESU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DPMT21.51ESU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Rake Angle 8 Degree
Thickness 0.0940 Inch
Chipbreaker Type ESU
Inscribed Circle 0.2500 Inch
Material Solid Carbide
Corner Radius 0.0156 Inch
Insert Size 21.51
Mounting Hole Diameter 0.1100 Inch
Shape Diamond
Grade AC820P
Product Name Turning Insert
Relief Angle 11 Degree
Insert Type Positive
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 55
Insert Style DPMT
