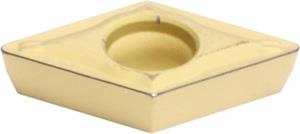

DPMT32.52 ESU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DPMT32.52ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style DPMT
Grade AC820P
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Thickness 0.0156 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 55
Number of Edges 4
Shape Diamond
Material Solid Carbide
Corner Radius 0.0313 Inch
Insert Size 32.52
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Relief Angle 11 Degree
Rake Angle 8 Degree
Inscribed Circle 0.3750 Inch
