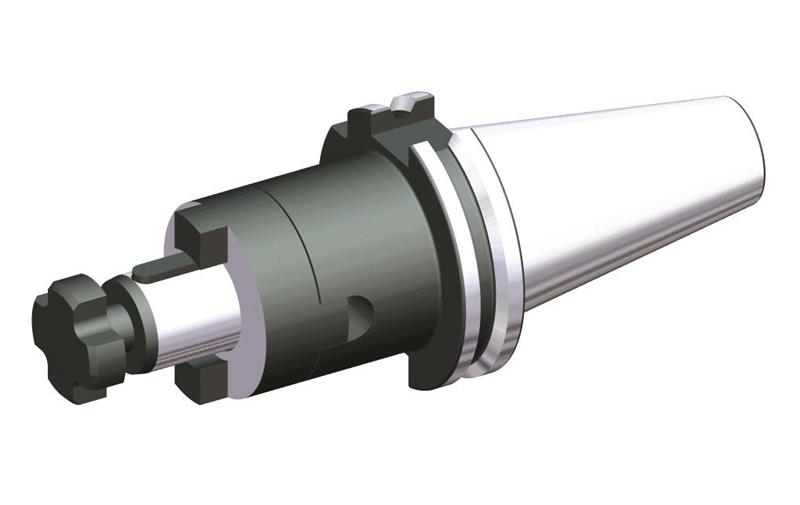

DV40 Taper, 32 mm Pilot Diameter, 100 mm Projection, Through-Spindle Coolant, Shell Mill Holder
- Item Code: DV40CS32100M
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapter Size Machine Side-EPP |
0400 |
| Adapter Style Machine Side |
DV-DIN69871 |
| Adapter Style Machine Side-EPP |
SKG11DIN69871-DVStyADw/CntCool |
| Body Diameter 1 Workpce Side (In) |
2.2830 |
| Body Diameter 1 Workpce Side (mm) |
58.000 |
| Flange Length (Metric) |
16.000 |
| Flange-Front End Dist (mm) |
80.900 |
| Gage Length 1 (Inch) |
3.9370 |
| Gage Length 1 (Metric) |
100.000 |
| Overall Length (Inch) |
7.5728 |
| Overall Length (Metric) |
192.350 |
| Pilot Length (Inch) |
1.4961 |
| Pilot Length (Metric) |
38.000 |
| Shank Length (Inch) |
2.6870 |
| Shank Length (Metric) |
68.250 |
| System Size Machine Side |
DV40 |
| Usable Length (Metric) |
80.900 |
| Adapter/Shank/Bore Diameter (Fractional) |
1 3/4 |
| Adapter/Shank/Bore Diameter (mm) |
44.450 |
| Adapter Type Machine Side-EPP |
SKG - Steep Taper |
| Body Diameter Machine Side (In) |
2.5000 |
| Brand |
WIDIA-Erickson |
| Body Diameter Machine Side (mm) |
63.500 |
| Adapt/Shank/Bore Diameter WKPS (mm) |
32.000 |
| Units of Tool (Extract) |
MM - Metric |
| Adapt/Shank/Bore Diameter WKPS (In) |
1.2598 |
| Adapter Type Machine Side |
Taper Shank |
| Adapter Size Workpiece Side |
0320 |
| Adapter/Shank/Bore Diameter (Inch) |
1.7500 |
