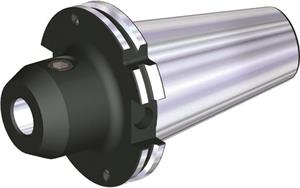

40mm Hole Diameter, 110mm Projection, M24 Drawbar Thread, DV50 Taper Shank End Mill Holder

  • Item Code: DV50BEM40110M
  • Brand: WIDIA-Erickson
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Adapt/Shank/Bore Diameter WKPS (In) 1.5748
Adapt/Shank/Bore Diameter WKPS (mm) 40.000
Adapter Size Workpiece Side 0400
Adapter Style Machine Side-EPP SKG17DIN69871DVStyBADw/CnDCnC
Body Diameter 1 Workpce Side (In) 3.5236
Body Diameter 1 Workpce Side (mm) 89.500
Body Diameter Machine Side (In) 3.8366
Body Diameter Machine Side (mm) 97.450
Clamp Screw ID Drive Size 10 mm
Clamp Screw Thread Size M20X2.0
Flange Length (Metric) 15.850
Flange-Front End Dist (In) 3.5810
Flange-Front End Dist (mm) 90.950
Gage Length 1 (Inch) 4.3307
Gage Length 1 (Metric) 110.000
Max Interference Diameter (Inch) 2.7461
Overall Length (Inch) 8.3307
Overall Length (Metric) 211.600
System Size Machine Side DV50
Usable Length (Inch) 3.5810
Usable Length (Metric) 90.950
Adapter Style Machine Side DV-DIN69871
Adapter/Shank/Bore Diameter (Fractional) 2 3/4
Adapter/Shank/Bore Diameter (Inch) 2.7500
Shank Length (Metric) 104.800
Brand WIDIA-Erickson
Adapter Size Machine Side-EPP 0500
Adapter Type Machine Side Taper Shank
Adapter Type Machine Side-EPP SKG - Steep Taper
Adapter/Shank/Bore Diameter (mm) 69.850
Shank Length (Inch) 4.1260
Units of Tool (Extract) MM - Metric
