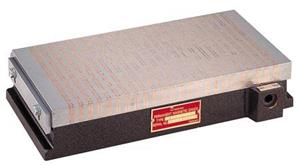

20.0 Inch x 8.0 Inch x 2.5 Inch MagVISE EDMT Surface Grinding Chucks

  • Item Code: EDMT-2050
  • Brand: Techniks
  • Unit Size: 1

Description

Alternating thick/thin poles provide holding for thick and thin workpieces. EDM-Ready, submersible, brass welded, machineable faceplate. Rare-Earth magnets are 5X stronger. No electricity. Low-profile design. Housing and bottom are non-magnetic.

Features Tech Specs

Features

Back To Top
    • EDM-READY: fully submersible, brass welded faceplate which can be machined if needed, and protects the magnetic system from penetration of coolant.
    • Needs no electricity. Provides a constant source of workholding power.
    • Low-profile design increases Z-axis stroke
    • Housing and bottom plate are free of magnetism€”will not magnetize machine bed or bearings.

Tech Specs

Back To Top
L x W x H 20" x 8" x 2.5"
Weight 79 lbs.
Pole Pitch (P) 11.2 (1.6+2+1.6+6)
Brand Techniks
