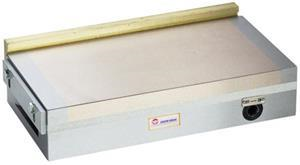

7.0 Inch x 4.0 Inch x 2.0 Inch MicroPITCH Fine Pole Surface Grinding Chuck

  • Item Code: EDTW-1018
  • Brand: Techniks
  • Unit Size: 1

Description

Fine pole provides holding for grinding of small or thin workpieces. Brass welded machineable faceplate. Rare Earth are 5 times more powerful than other magnets. No electricity. Low-profile design. Housing and bottom plate are free of magnetism.

Features Tech Specs

Features

Back To Top
    • Brass welded faceplate can be machined if needed, and protects the magnetic system from penetration of coolant.
    • Needs no electricity. Provides a constant source of workholding power.
    • Low-profile design increases Z-axis stroke
    • Housing and bottom plate are free of magnetism€”will not magnetize machine bed or bearings.

Tech Specs

Back To Top
L x W x H 7" x 4" x 2"
Pole Pitch (P) 2 (1+1)
Weight 15 lbs.
Brand Techniks
