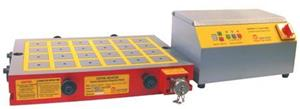

23.2 Inch x 11.8 Inch x 2.8 Inch x 32 Poles x 22,000 lbs Holding Power, Electro-Permanent Workholding Magnet
- Item Code: EEPM-3060W-480
- Brand: Techniks
- Unit Size: 1
Description
Variety of sizes to best fit your needs. Will not lose magnetism if a power loss occurs. Induction blocks and subplates provide additional setup options. Machine freely on 5-sides & top. Reduce setup & part change by 50% or more.
Features
Back To Top- Select a chuck larger than your part for maximum holding power
- Subplates are sized to match the chuck but are 1" thick
- Control is included and requires dedicated, 480v, single phase, 30A power
Tech Specs
Back To Top| Holding Power | 22,000 lbs. |
|---|---|
| L x W x H | 23.2" x 11.8" x 2.8" |
| Poles | 32 |
| Subplate | EEPM-3060ISP |
| Weight | 180 lbs. |
| Controller | EEPM-C1 |
| Brand | Techniks |
