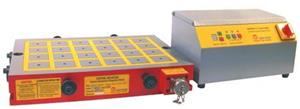

39.0 Inch x 16.5 Inch x 2.8 Inch x 84 Poles x 57,750 lbs Holding Power, Electro-Permanent Workholding Magnet

  • Item Code: EEPM-40100W-480
  • Brand: Techniks
  • Unit Size: 1

Description

Variety of sizes to best fit your needs. Will not lose magnetism if a power loss occurs. Induction blocks and subplates provide additional setup options. Machine freely on 5-sides & top. Reduce setup & part change by 50% or more.

Features Tech Specs

Features

Back To Top
    • Select a chuck larger than your part for maximum holding power
    • Subplates are sized to match the chuck but are 1" thick
    • Control is included and requires dedicated, 480v, single phase, 30A power

Tech Specs

Back To Top
Controller EEPM-C4
L x W x H 39.0" x 16.5" x 2.8"
Poles 84
Subplate EEPM-40100ISP
Weight 425 lbs.
Brand Techniks
Holding Power 57,750 lbs.
