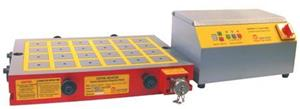

39.0 Inch x 18.9 Inch x 2.8 Inch x 98 Poles x 67,375 lbs Holding Power, Electro-Permanent Workholding Magnet
- Item Code: EEPM-50100W-480
- Brand: Techniks
- Unit Size: 1
Description
Variety of sizes to best fit your needs. Will not lose magnetism if a power loss occurs. Induction blocks and subplates provide additional setup options. Machine freely on 5-sides & top. Reduce setup & part change by 50% or more.
Features
Back To Top- Select a chuck larger than your part for maximum holding power
- Subplates are sized to match the chuck but are 1" thick
- Control is included and requires dedicated, 480v, single phase, 30A power
Tech Specs
Back To Top| Holding Power | 67,375 lbs. |
|---|---|
| L x W x H | 39.0" x 18.9" x 2.8" |
| Poles | 98 |
| Subplate | EEPM-50100ISP |
| Weight | 482 lbs. |
| Brand | Techniks |
| Controller | EEPM-C4 |
