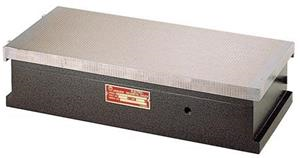

8.0 Inch x 20.0 Inch x 4.5 Inch x 24,000 Holding Power, Fine Pole Surface Grinding Chuck

  • Item Code: EET-2050W
  • Brand: Techniks
  • Unit Size: 1

Description

Fine pole design optimized for maximum holding power for surface grinding of thin workpieces. Brass welded, machineable faceplate. More than 1,000 OHMs resistance. Low-profile design. Housing and bottom plate are free of magnetism.

Features Tech Specs

Features

Back To Top
    • EDM-READY: fully submersible, brass sealed (More than 1000M? of insulation resistance)
    • Hard soldered top plate and solid bottom plate for maximum rigidity and accuracy
    • Low-profile design increases Z-axis stroke
    • Strong magnetic force regulated by controller
    • Magnetic controller demagnetizes workpiece

Tech Specs

Back To Top
Amps 1.40
L x W x H 20" x 8" x 4.5"
Weight 176 lbs.
Brand Techniks
Pole Pitch (P) 4(1+3)
Volts DC90V
