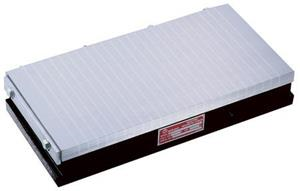

16.0 Inch x 24.0 Inch x 3.5 Inch x 57,600 Holding Power, Wide Spaced Pole Surface Grinding Chuck

  • Item Code: EET-4060
  • Brand: Techniks
  • Unit Size: 1

Description

Wider spacing magnetic poles for general surface grinding of both thick and thin workpieces. Brass welded, machineable faceplate. More than 1,000 OHMs resistance. Low-profile design. Housing and bottom plate are free of magnetism.

Features Tech Specs

Features

Back To Top
    • EDM-READY: fully submersible, brass sealed (More than 1000M? of insulation resistance)
    • Hard soldered top plate and solid bottom plate for maximum rigidity and accuracy. Low-profile design increases Z-axis stroke.
    • Strong magnetic workholding regulated by controller.
    • Controller demagnetizes workpiece.

Tech Specs

Back To Top
Amps 0.95
L x W x H 24" x 16" x 3.5"
Pole Pitch (P) 19 (3+16)
Weight 287 lbs.
Brand Techniks
Volts DC90V
