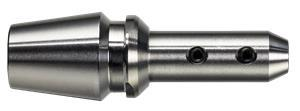

0.1250 in. (1/8) Bore Diameter x 0.315 in. (8 mm) Shaft Diameter x 0.3940 in. Projection Length x ER11 Taper Solid ER Integrated Tool Holder

  • Item Code: ER11I-2-394
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reached ER taper integrated holder that eliminates the need for multiple spindle adapters
    • Designed for Swiss and multi-function lathes
    • Works with any ER holder or ER spindle in both live and static applications
    • Multiple projections available
    • Maximum T.I.R. of < .0002?
    • Included stop screw allows for quicker tool changes
    • Stop screw can be adjusted from either end of the holder

Tech Specs

Back To Top
Tool Holder Collar Diameter 0.315" (8 mm)
Tool Holder Bore Diameter 0.1250" (1/8)
Brand Micro 100
Projection 0.3940"
Coating/Finish None
Type ER11
Product Type ER
