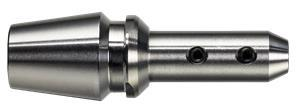

0.1875 in. (3/16) Bore Diameter x 0.374 in. Shaft Diameter x 0.6300 in. Projection Length x ER16 Taper Solid ER Integrated Tool Holder

  • Item Code: ER16I-3-630
  • Brand: Micro 100
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reached ER taper integrated holder that eliminates the need for multiple spindle adapters
    • Designed for Swiss and multi-function lathes
    • Works with any ER holder or ER spindle in both live and static applications
    • Multiple projections available
    • Maximum T.I.R. of < .0002?
    • Included stop screw allows for quicker tool changes
    • Stop screw can be adjusted from either end of the holder

Tech Specs

Back To Top
Tool Holder Collar Diameter 0.374"
Coating/Finish None
Projection 0.6300"
Tool Holder Bore Diameter 0.1875" (3/16)
Brand Micro 100
Product Type ER
Type ER16
