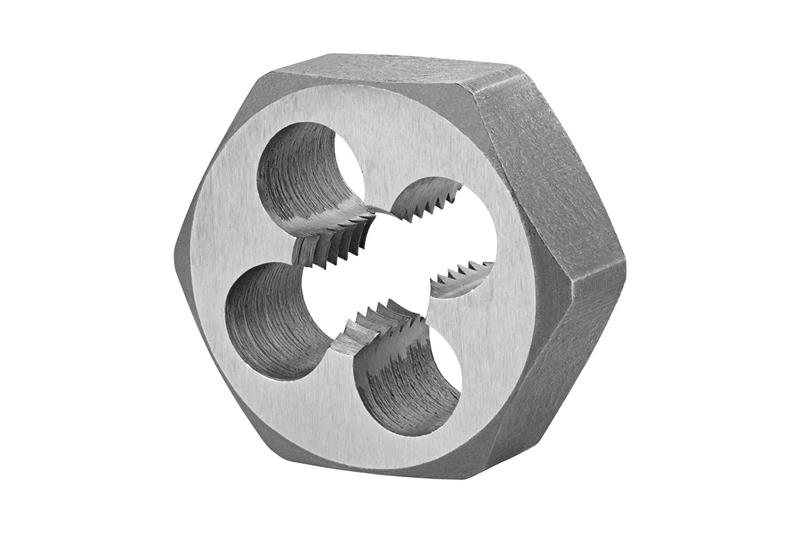

M12 x 1.75 HSS Bright RH Rethreading Hex Die Nut
- Item Code: F302M12
- Brand: Dormer
- Unit Size: 1
Description
Hexagon die nut, for ISO-Metric thread M12 with 1.75 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.1000" width across flat and 1/2" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Overall Length Inches | 0.5" |
|---|---|
| Thread Size Metric | M12 x 1.75 |
| Coating/Finish | Bright |
| Overall Length Fractional | 1/2" |
| Material | High Speed Steel |
| Brand | Dormer |
| Cutting Direction | Right |
| Overall Length Metric | 12.7 mm |
