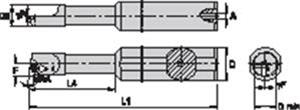

1/2 Inch Shank Dia. x 0.259 Inch Head Dia. x 3.000 Inch Overall Length x 0.296 Inch Min Dia. Stepped S-Clamp RH Boring Bar

  • Item Code: FSBI2505001255R-WG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Axial Rake Angle 5 Degree
Brand WIDIA
Cutting Height 0.0100 Inch
Lead Angle -5 Degree
Min Bore Diameter 0.2960 Inch
Shank Diameter 1/2 Inch
Unit of Measure Inch
Product Type Boring Bar
Hand of Tool Right
Insert Style FSBI
Overall Length 3 Inch
Drive Size T7
Grade WG
Tool Length 3 Inch
Included Angle 60
Head Diameter 0.2590 Inch
Shank Length 1.7500 Inch
Head Length 1.2500 Inch
Insert Shape Triangle
