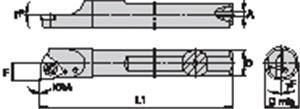

0.312 Inch Dia. x 6.000 Inch Overall Length x 0.347 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: GCBIW31263R
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Insert Style GCBIW
Min Bore Diameter 0.3470 Inch
Axial Rake Angle 0 Degree
Lead Angle -3 Degree
Shank Diameter 0.3120 Inch
Tool Length 6 Inch
Brand WIDIA
Cutting Height 0.0100 Inch
Unit of Measure Inch
Grade WG
Hand of Tool Right
Insert Shape Trigon
Shank Length 5.4560 Inch
Drive Size T6
Included Angle 80
Head Length 0.5440 Inch
Overall Length 6 Inch
Product Type Boring Bar
