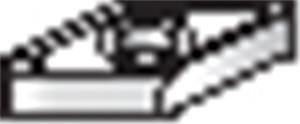

GCHW151505 4.76 mm Grade CG5 Carbide TiN Coated Turning Insert

  • Item Code: GCHW151505-CG5
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Inscribed Circle 3/16 Inch
Number of Cutting Edges 2
Clearance Angle 7 Degree
Cutting Edge Length 0.2650 Inch
Insert Style GCHW
Thickness 0.0930 Inch
Grade CG5
Shape Diamond
Brand WIDIA
Coating/Finish TiN
Corner Radius 0.0070 Inch
Hand of Tool Neutral
Product Type Turning
Included Angle 45
Type Screw-On
Insert Hole Size 0.0940 Inch
Material Solid Carbide
