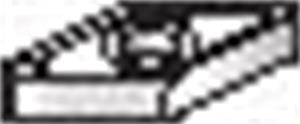

GCHW151505 4.76 mm Grade CM1 Carbide Black Oxide Coated Positive Insert
- Item Code: GCHW151505 CM1
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: Most Steels, Stainless Steels, High-Temperature Alloys, Titanium, Irons, Non-Ferrous Materials
PVD-TiN-coated carbide grade
Straight 9.5% Co substrate
Submicron grain
For general-purpose machining of most steels, stainless steels, high-temperature alloys, titanium, irons, and non-ferrous materials
Performs best at low speeds and will handle interruptions and high feed rates
Features
Back To Top- Use when chip control is not critical.
Tech Specs
Back To Top| Insert Hole Size | 0.0940 Inch |
|---|---|
| Insert Style | GCHW |
| Thickness | 0.0930 Inch |
| Shape | Diamond |
| Material | Solid Carbide |
| Number of Cutting Edges | 2 |
| Clearance Angle | 7 Degree |
| Cutting Edge Length | 0.2650 Inch |
| Grade | CM1 |
| Brand | WIDIA |
| Included Angle | 45 |
| Type | Screw-On |
| Corner Radius | 0.0070 Inch |
| Hand of Tool | Neutral |
| Inscribed Circle | 3/16 Inch |
| Coating/Finish | None |
| Product Type | Turning |
