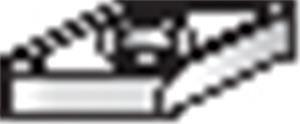

GCHW15151 4.76 mm Grade CM1 Carbide Uncoated Neutral Hand Turning Insert
- Item Code: GCHW15151-CM1
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: Most Steels, Stainless Steels, High-Temperature Alloys, Titanium, Irons, Non-Ferrous Materials
Uncoated carbide
A very tough, ultra-fine grain unalloyed substrate
For general-purpose machining of most steels, stainless steels, high-temperature alloys, titanium, irons, and non-ferrous materials
Performs best at low speeds and will handle interruptions and high feed rates
Use when C2, C3, or C25 fail due to chipping or breaking
Features
Back To Top- Small Hole Boring, Suitable for interrupted cuts.
Tech Specs
Back To Top| Inscribed Circle | 3/16 Inch |
|---|---|
| Shape | Diamond |
| Included Angle | 45 |
| Number of Cutting Edges | 2 |
| Material | Solid Carbide |
| Hand of Tool | Neutral |
| Product Type | Turning |
| Coating/Finish | None |
| Insert Hole Size | 0.0940 Inch |
| Clearance Angle | 7 Degree |
| Cutting Edge Length | 0.2650 Inch |
| Grade | CM1 |
| Insert Style | GCHW |
| Thickness | 0.0930 Inch |
| Brand | WIDIA |
| Corner Radius | 0.0150 Inch |
| Type | Screw-On |
