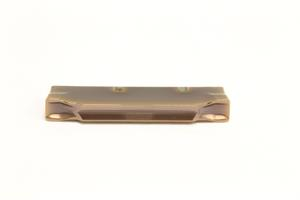

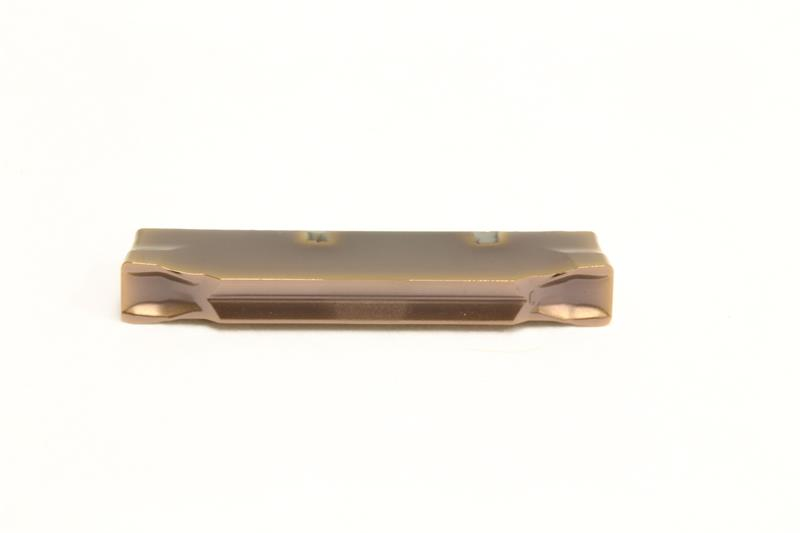

GCMN6250 GG AC830P Carbide, .0156 Corner Radius, GND Series Double Grooving Insert
- Item Code: GCMN6250R1.0-GG AC830P
- Brand: Sumitomo
- Unit Size: 1
Description
GND Series - General Feed GG Type
Tech Specs
Back To Top| Corner Radius (Decimal Inch) | 0.0157 |
|---|---|
| Corner Radius (in) | 0.0157 |
| Maximum Corner Radius (Decimal Inch) | 0.0157 |
| Minimum Corner Radius (Decimal Inch) | 0.0157 |
| Overall Width (Inch) | 1/4 |
| Overall Width (mm) | 6.35 |
| Cutting Height (Inch) | 0.1770 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 25.40 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (mm) | 0.40 |
| Cutting Height (mm) | 4.50 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Insert Style | GCMN |
| Brand | Sumitomo |
| Insert Seat Size | 6 |
| Maximum Depth of Cut (Inch) | 1 |
| Lead Angle | 0 |
| Material | Solid Carbide |
| Product Type | Grooving |
| Cutting Width (Inch) | 1/4 |
| Mfg Grade | AC830P |
| Series | GND |
| Cutting Width (mm) | 6.35 |
| Relief Angle | 5 |
| Chipbreaker | GG |
| Overall Width (Decimal Inch) | 0.2500 |
