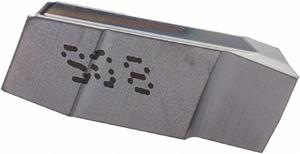

Insert #6499426 Iscar
- Item Code: GIPM2.35-A46R IC908
- Brand: Iscar
- Unit Size: 1
Description
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tech Specs
Back To Top| Cutting Width | 2.35mm |
|---|---|
| Insert Size | 235 |
| Manufacturer's Grade | IC908 |
| Material Grade | C1/C2/C6/C7 |
| Rake Angle | 6° |
| Coating Process | PVD |
| Coating/Finish | TiAlN |
| Type | Insert |
| Corner Radius | 0.05mm |
| Brand | Iscar |
| Material | Solid Carbide |
| Relief Angle | 7° |
| Rake | Positive |
| Insert Style | GIPM |
| Maximum Depth of Cut | 1mm |
