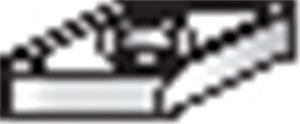

GPHW12105 3.97 mm Grade CG6 Carbide TiC Coated Neutral Hand Turning Insert
- Item Code: GPHW12105-CG6
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: All kinds of steel
Coated carbide
CVD ? TiC-TiCN-TiN
Tri-phase coating on a hard, low binder content, fine-grained grade
High-speed, general-purpose grade for all kinds of steel
Color: Gold
Features
Back To Top- Small Hole Boring, Suitable for interrupted cuts.
Tech Specs
Back To Top| Clearance Angle | 11 Degree |
|---|---|
| Coating/Finish | TiC |
| Insert Hole Size | 0.0840 Inch |
| Number of Cutting Edges | 2 |
| Corner Radius | 0.0070 Inch |
| Hand of Tool | Neutral |
| Thickness | 0.0620 Inch |
| Grade | CG6 |
| Shape | Diamond |
| Inscribed Circle | 5/32 Inch |
| Insert Style | GPHW |
| Material | Solid Carbide |
| Brand | WIDIA |
| Cutting Edge Length | 0.2210 Inch |
| Included Angle | 45 |
| Product Type | Turning |
| Type | Screw-On |
