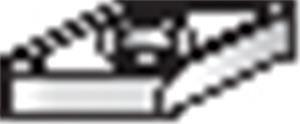

GPHW12105 3.97 mm Grade CM1 Carbide Uncoated Neutral Hand Turning Insert
- Item Code: GPHW12105-CM1
- Brand: WIDIA
- Unit Size: 1
Description
Application Material: Most Steels, Stainless Steels, High-Temperature Alloys, Titanium, Irons, Non-Ferrous Materials
Uncoated carbide
A very tough, ultra-fine grain unalloyed substrate
For general-purpose machining of most steels, stainless steels, high-temperature alloys, titanium, irons, and non-ferrous materials
Performs best at low speeds and will handle interruptions and high feed rates
Use when C2, C3, or C25 fail due to chipping or breaking
Features
Back To Top- Small Hole Boring, Suitable for interrupted cuts.
Tech Specs
Back To Top| Type | Screw-On |
|---|---|
| Cutting Edge Length | 0.2210 Inch |
| Included Angle | 45 |
| Insert Style | GPHW |
| Brand | WIDIA |
| Product Type | Turning |
| Shape | Diamond |
| Grade | CM1 |
| Number of Cutting Edges | 2 |
| Inscribed Circle | 5/32 Inch |
| Material | Solid Carbide |
| Corner Radius | 0.0070 Inch |
| Hand of Tool | Neutral |
| Clearance Angle | 11 Degree |
| Insert Hole Size | 0.0840 Inch |
| Coating/Finish | None |
| Thickness | 0.0620 Inch |
